• 4.30 axle ratio w/limited slip rear axle
• Electric shift-on-the-fly transfer case -inc: manual-locking front hubs, instrument panel auto rotary control
• 4-wheel drive
• 78 amp/hr (750 CCA) dual batteries
• 157-amp HD alternator
• Trailer tow pkg -inc: 7-wire harness w/relays, 7/4 pin combination connector
• 17.5K trailer hitch receiver -inc: 2.5" hitch & 2" reducer sleeve
• Trailer brake controller *Compatible w/select electric over hydraulic brakes*
• 8' pickup box -inc: (6) tie-down hooks, partitionable & stackable storage
• (2) front tow hooks
• Mono-beam wide track front suspension w/extended axle
• HD gas shock absorbers
• Front stabilizer bar
• Pwr steering w/steering damper
• Pwr 4-wheel disc brakes w/hydro-boost
• 4-ton hydraulic jack

• (7) LT245/75R17E all-season BSW tires
• 17" forged polished aluminum wheels -inc: bright center ornaments
• Full-size spare tire w/lock & carrier
• Chrome front bumper w/grained top cover
• Chrome rear bumper
• Front fender vents
• Box-rail & tailgate top-edge moldings
• 5" chrome tubular step bars
• Grille w/medium platinum insert & chrome surround
• Autolamp/rainlamp dual beam halogen headlamps
• Fog lamps
• Pickup box/cargo lights
• Roof clearance lights
• Underhood service light
• PowerScope heated pwr telescoping & folding trailer tow mirrors -inc: turn signals, integrated clearance lights, heated convex spotter mirror
• Solar tinted glass
• Rear privacy glass
• Pwr sliding rear window
• Interval windshield wipers
• Front/rear license plate brackets
• Body-color door handles
• Removable locking tailgate w/black handle & TailGate Assist

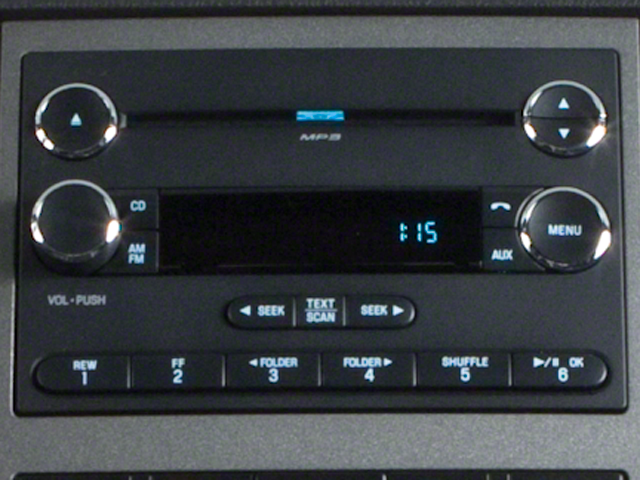

• Premium AM/FM stereo w/CD/MP3 player -inc: clock, (8) speakers, subwoofer, aux audio input jack
• SIRIUS satellite radio
• SYNC voice activated communications & entertainment system -inc: Bluetooth® capability, steering wheel audio controls, USB port, audio input jack, 911 Assist, vehicle health reports, turn-by-turn navigation, real-time traffic

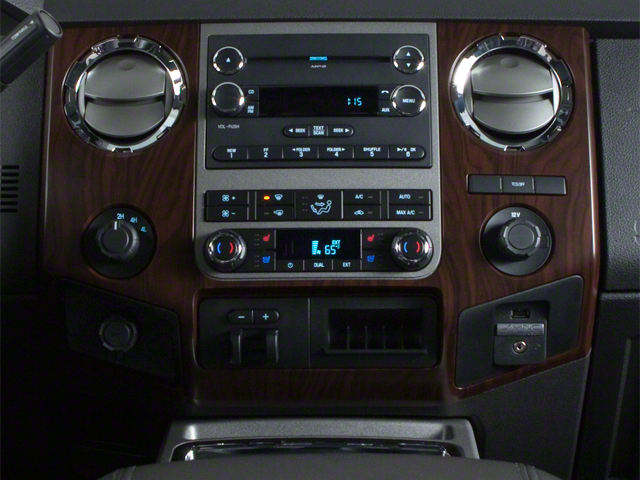

• Dual zone electronic automatic temperature control (DEATC)

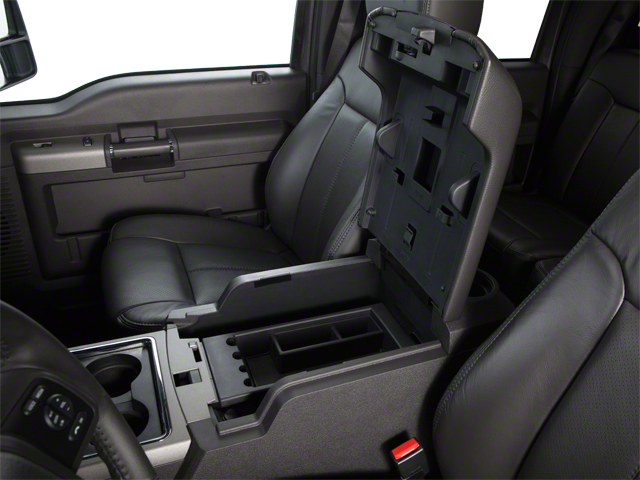

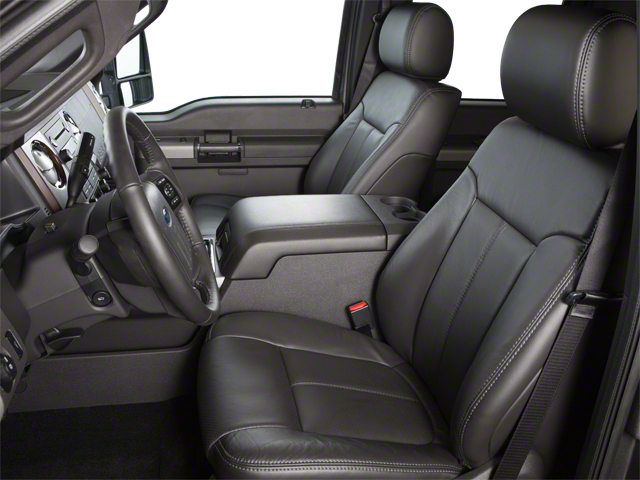

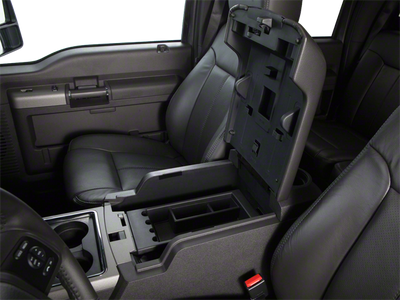

• Premium leather 40/console/40 front seats -inc: monotone leather insert, (2) aux pwr outlets in console
• 10-way pwr driver & front passenger seats

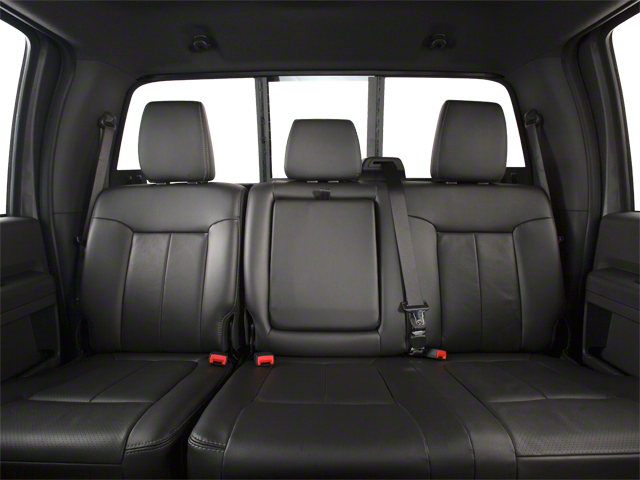

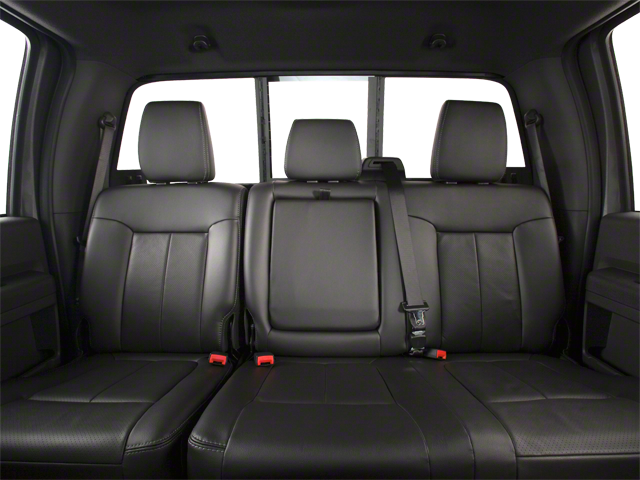

• 60/40 flip-up/fold-down rear split bench seat -inc: dual cupholders in armrest, underseat partitioned lockable storage w/aux pwr outlet, (3) head restraints
• Rear armrests w/cupholders
• Color-keyed carpet full-floor covering
• Front/rear color-keyed carpeted floor mats
• Color-keyed scuff plates

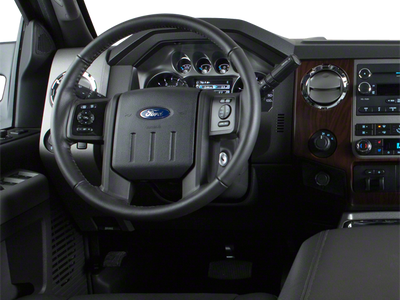

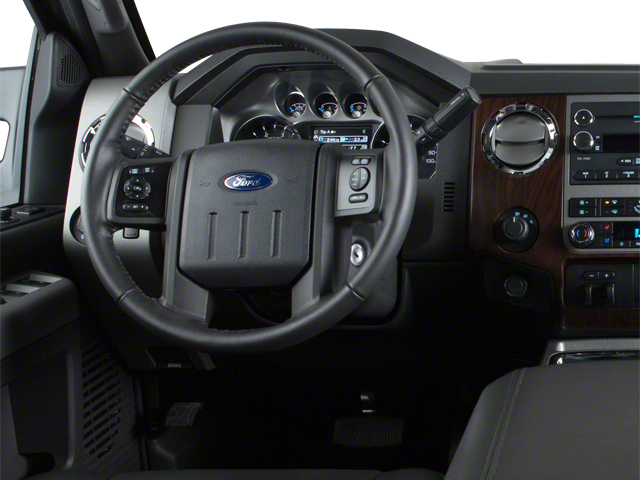

• Tilt/telescoping steering column
• Color-coordinated leather-wrapped steering wheel w/audio & SYNC controls
• LCD productivity screen -inc: driver configurable enhanced information 4.2" display, menus for gauge setup, trip computer, fuel economy, towing/off-road applications, (5) button message control on steering wheel
• Intelligent oil life minder

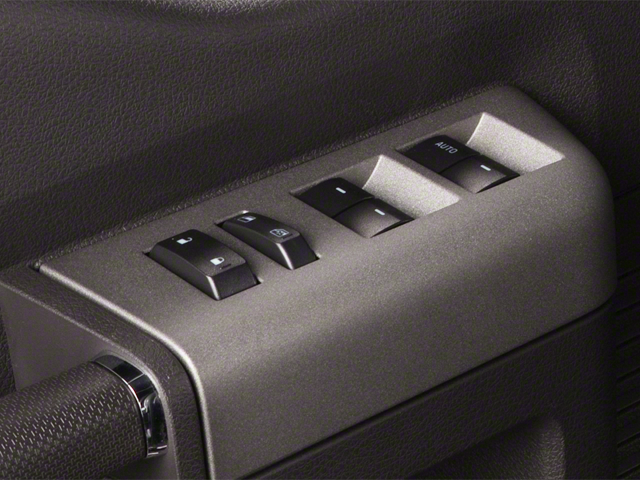

• Pwr windows w/driver one-touch-down & backlit switches
• Accessory delay
• Pwr door locks w/backlit switches, autolock & auto unlock, SecuriCode keyless entry keypad
• Pwr adjustable pedals
• Remote keyless entry & perimeter anti-theft alarm
• SecuriLock anti-theft ignition
• Cruise control
• 3-blink lane change signal
• (4) air registers w/positive shut-off
• (2) aux pwr outlets in instrument panel
• 110V/150W inverter aux pwr outlet in rear console
• Dash-top tray

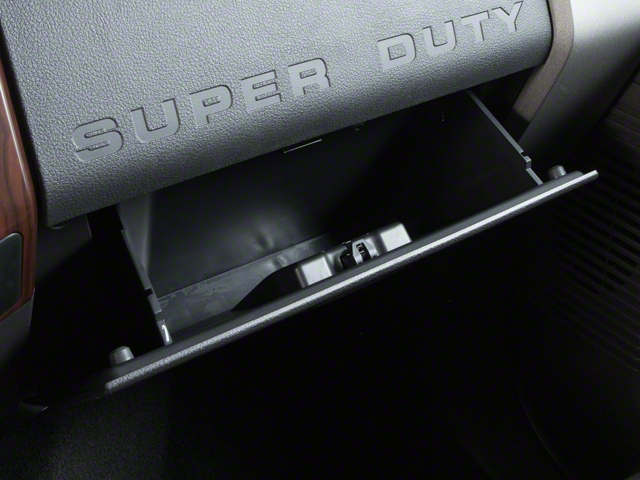

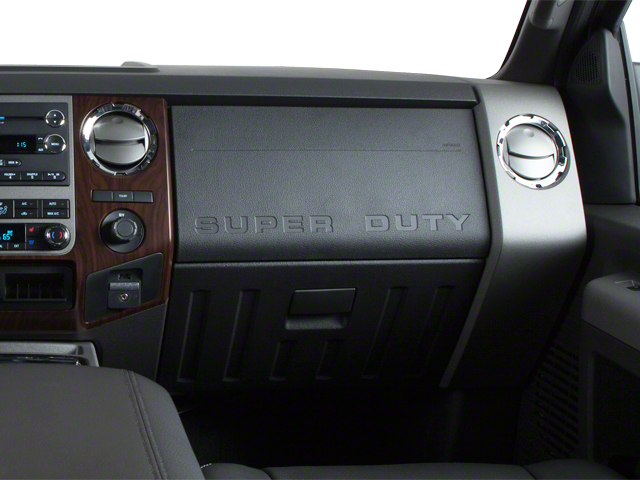

• Glove box
• Secondary glove box
• Instrument panel mounted storage bin & trash bag hook
• Instrument panel mounted dual cupholders
• Color-keyed door trim panel -inc: soft armrest, grab handle, reflector, dark foundry upper applique, upper & lower map pockets
• Electrochromic rearview mirror w/compass
• Overhead console -inc: storage bins for garage door opener & sunglasses
• Color-keyed cloth headliner -inc: integrated SYNC microphone
• Front passenger-side roof ride handle
• Rear seating roof ride handles
• Driver & front passenger grab handles
• Dual color-keyed vinyl sunvisors-inc: driver-side map strap, dual covered lighted mirrors
• Front door operated dome lamp w/time delay off & IP switch
• Front/rear map lamps
• Dual color-keyed coat hooks

• 4-wheel anti-lock braking system (ABS)
• Hill start assist control
• Trailer sway control
• Driver & front passenger airbags
• Driver & front passenger side air bag/curtain
• Reverse vehicle aid sensor
• SOS post crash alert system
• Color-keyed safety belts w/front seat outboard height adjustable D-rings
• BeltMinder seatbelt-not-buckled chime & flashing warning light
• Rear door child safety locks
• Child seat tethers on all rear passenger seats
• Tire pressure monitoring system

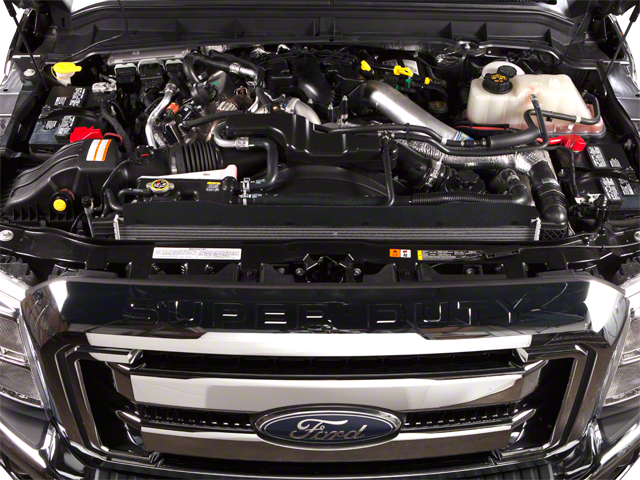

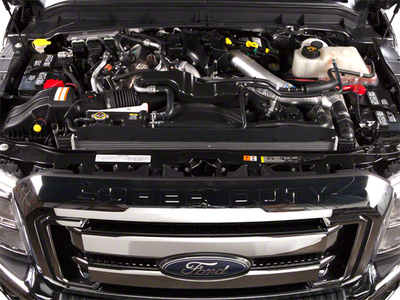

6.7L 32-VALVE POWER STROKE V8 DIESEL ENGINE

• diesel emission fluid system
• engine exhaust braking in tow/haul mode

• Limited Slip w/4.30 Rear Axle Ratio
• GVWR: 13,300 lb Payload Package
• 17" Forged Polished Aluminum Wheels
• 4-Wheel Disc Brakes
• Dual rear wheels
• Front beverage holders
• Variably intermittent wipers
• Traction control
• Tilt steering wheel
• Telescoping steering wheel
• Split folding rear seat
• Rear step bumper
• Rear reading lights
• Rear anti-roll bar
• Power steering
• Passenger vanity mirror
• Overhead console
• Overhead airbag
• Outside temperature display
• Front reading lights
• Front anti-roll bar
• Dual front side impact airbags
• Dual front impact airbags
• Brake assist
• Alloy wheels
• ABS brakes
• Tachometer
• Air Conditioning

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 157
• Maximum Alternator Watts: 2100
• Cooling System
• Total Cooling System Capacity (qts): 38.9
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 6000
• Gross Axle Wt Rating - Rear (lbs): 9000
• Curb Weight - Front (lbs): 4758
• Curb Weight - Rear (lbs): 3412
• Gross Vehicle Weight Rating Cap (lbs): 13300
• Gross Combined Wt Rating (lbs): 33000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 16000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 2400
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 24400
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 6100
• Suspension
• Suspension Type - Front: Twin Coil
• Suspension Type - Rear: Leaf Spring
• Spring Capacity - Front (lbs): 6000
• Spring Capacity - Rear (lbs): 9000
• Axle Type - Front: Dana Monobeam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 9500
• Axle Ratio (:1) - Front: 4.30
• Axle Ratio (:1) - Rear: 4.30
• Shock Absorber Diameter - Front (mm): 35.1
• Shock Absorber Diameter - Rear (mm): 35.1
• Stabilizer Bar Diameter - Front (in): 1.26
• Stabilizer Bar Diameter - Rear (in): 0.87
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.5 x 0.6
• Rear Brake Rotor Diam x Thickness (in): 15.4 x 0.5
• Tires
• Front Tire Order Code: TBK
• Rear Tire Order Code: TBK
• Spare Tire Order Code: - TBD -
• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT245/75R17E
• Spare Tire Size: LT245/75R17E
• Front Tire Capacity (lbs): 2910
• Rear Tire Capacity (lbs): 2910
• Spare Tire Capacity (lbs): 2910
• Revolutions/Mile @ 45 mph - Front: 660
• Revolutions/Mile @ 45 mph - Rear: 660
• Revolutions/Mile @ 45 mph - Spare: 660
• Wheels
• Front Wheel Size (in): 17 x 6.5
• Rear Wheel Size (in): 17 x 6.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 20.4
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 50.4
• Turning Diameter - Wall to Wall (ft): 52.5
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 37.5
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 172.4
• Length, Overall w/o rear bumper (in): 263.0
• Width, Max w/o mirrors (in): 96.0
• Height, Overall (in): 79.7
• Overhang, Front (in): 38.1
• Overhang, Rear w/o bumper (in): 52.4
• Front Bumper to Back of Cab (in): 154.2
• Cab to Axle (in): 56.3
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 35.4
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.0
• Ground Clearance, Rear (in): 8.0
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.0
• Cargo Box Width @ Top, Rear (in): 60.6
• Cargo Box Width @ Floor (in): 60.6
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 20.0
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 77.3
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 40.7
• Front Leg Room (in): 41.1
• Front Shoulder Room (in): 68.0
• Front Hip Room (in): 67.6
• Second Head Room (in): 40.8
• Second Leg Room (in): 42.1
• Second Shoulder Room (in): 68.0
• Second Hip Room (in): 67.6
• Summary

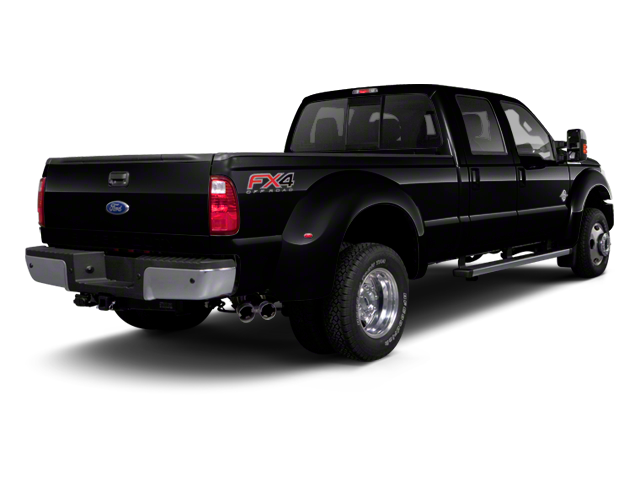

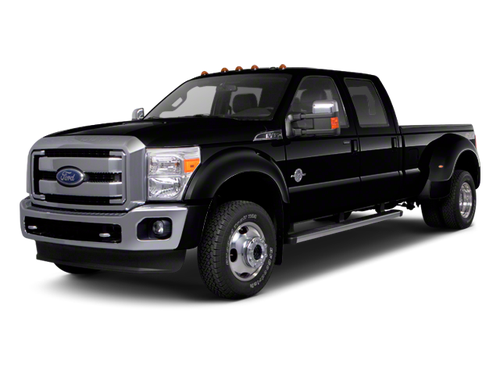

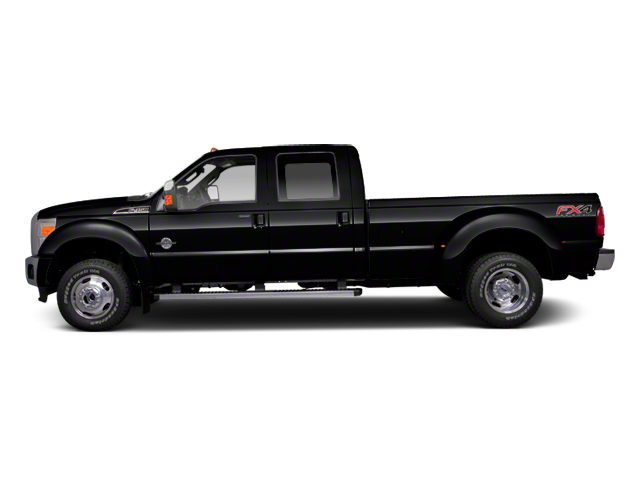

• Vehicle Name: Ford Super Duty F-450 DRW
• Body Style: Crew Cab 8'
• Body Code: 172" WB
